Neutra-Safe CN2-220C

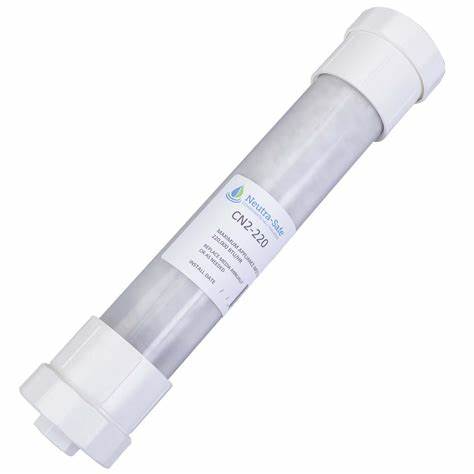

The Neutra-Safe CN2-220C is a 2-inch diameter clear tube condensate neutralizer designed to treat acidic condensate produced by gas-fired condensing appliances, such as boilers, water heaters, and furnaces, with inputs up to 220,000 BTU/hr. By neutralizing the acidity, it safeguards plumbing systems and the environment from potential corrosion and damage.

Key Features:

• Clear Tube Design: The transparent construction allows for easy visual inspection of the neutralizing media, facilitating timely maintenance and replacement.

• Integral O-Ring Unions: Equipped with built-in unions and O-ring seals at each end, ensuring straightforward installation, servicing, and media replacement without disrupting the drain line.

• Media-Filled Sack: Contains a proprietary blend of calcite and magnesium oxide within a fabric sack, enhancing neutralization efficiency and simplifying media handling during replacements.

• Bi-Directional Flow: Designed for horizontal installation, allowing flexibility in various plumbing configurations.

• Snap-In Brackets: Includes two snap-in mounting brackets for secure and convenient installation.

Specifications:

• Model Number: CN2-220C

• Capacity: Suitable for appliances with inputs up to 220,000 BTU/hr.

• Tube Diameter: 2 inches

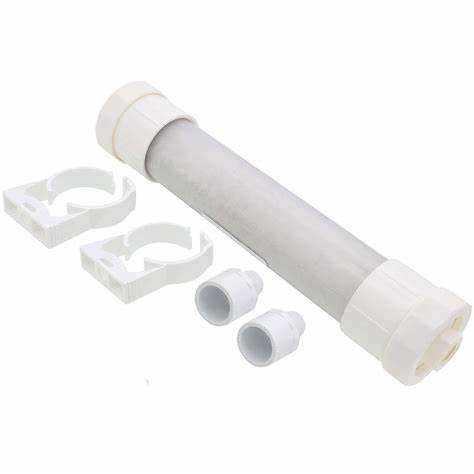

• Included Components:

  • Media-filled sack

  • Two ½” Male x ¾” PVC socket fittings

  • Two snap-in brackets

Applications:

Ideal for use with high-efficiency condensing appliances, the CN2-220C effectively neutralizes acidic condensate, preventing damage to drainage systems, sewers, septic systems, and treatment facilities.
