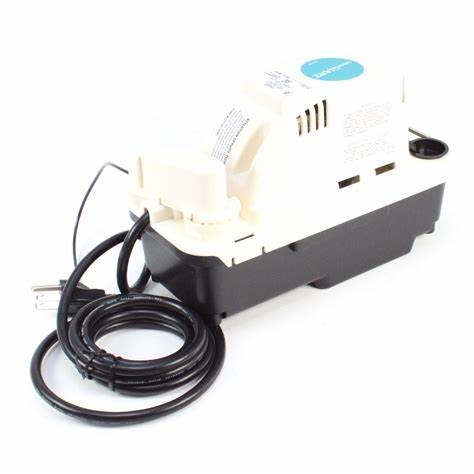

Little Giant VCMA20ULSPRO Condensate Pump

The Little Giant VCMA20ULSPRO Condensate Pump (Model: 554630) is designed for the automatic removal of condensate produced by boilers, furnaces, air conditioners, and dehumidifiers. Its robust construction and efficient performance make it suitable for both residential and commercial HVAC systems.

Key Features:

• Efficient Pumping Performance: Capable of handling up to 84 gallons per hour (GPH) at a 1-foot head, 75 GPH at 5 feet, 60 GPH at 10 feet, and 42 GPH at 15 feet, ensuring effective condensate removal across various applications.

• Safety Switch Integration: Equipped with a safety switch that can be wired to shut down the connected HVAC equipment or trigger an alarm in the event of pump failure, providing an added layer of protection against overflow.

• High Shutoff Head: Offers a maximum shutoff head of 21 feet, allowing for versatile installation options where higher lift is required.

• Durable Construction: Features an oil-resistant tank that eliminates the problem of cracked tanks due to oil exposure, enhancing longevity and reliability.

• Compact Design: With dimensions of 4.8" x 10.2" x 6.5", its slim footprint offers flexibility in tight spaces.

• Additional Features: Includes a check valve and external test/run lever for easy maintenance and testing. Rubber feet absorb vibration on hard surfaces, and thermal overload protection ensures safe operation.

Specifications:

• Model Number: 554630

• Voltage: 115V

• Horsepower: 1/30 HP

• Flow Rates:

  • 84 GPH at 1' lift

  • 75 GPH at 5' lift

  • 60 GPH at 10' lift

  • 42 GPH at 15' lift

• Maximum Shutoff Head: 21 feet

• Safety Switch: Yes

• Dimensions: 4.8" x 10.2" x 6.5"
