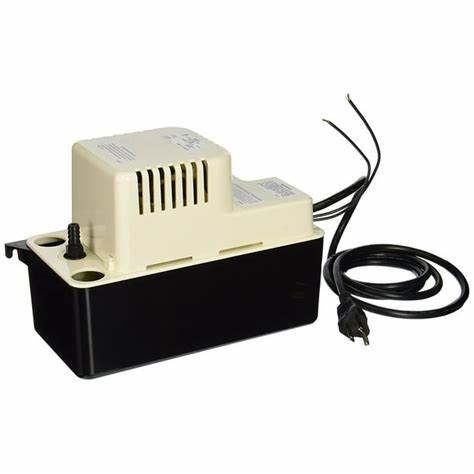

Little Giant VCMA-15ULS Condensate Pump

The Little Giant VCMA-15ULS Condensate Pump (Model: 554405) is engineered to efficiently manage the automatic removal of condensate produced by boilers, furnaces, air conditioners, and dehumidifiers. Its robust construction and reliable performance make it suitable for both residential and commercial HVAC systems.

Key Features:

• Efficient Pumping Performance: Capable of handling up to 65 gallons per hour (GPH) at a 1-foot head, 50 GPH at 5 feet, and 30 GPH at 9 feet, ensuring effective condensate removal across various applications.

• Safety Switch Integration: Equipped with a safety switch that can be wired to shut down the connected HVAC equipment or trigger an alarm in the event of pump failure, providing an added layer of protection against overflow.

• High Shutoff Head: Offers a maximum shutoff head of 15 feet, allowing for versatile installation options where higher lift is required.

• Durable Construction: Features a robust design with a 1/50 horsepower motor, ensuring long-lasting reliability and performance.

• Compact and Lightweight: Weighing approximately 4.8 lbs, its compact design facilitates easy installation in confined spaces.

Specifications:

• Model Number: 554405

• Horsepower: 1/50 HP

• Flow Rates:

  • 65 GPH at 1' lift

  • 50 GPH at 5' lift

  • 30 GPH at 9' lift

• Maximum Shutoff Head: 15 feet

• Safety Switch: Yes

• Weight: 4.8 lbs

• Applications:

Ideal for use in HVAC systems to remove condensate from air conditioners, high-efficiency furnaces, boilers, and dehumidifiers, ensuring proper drainage and preventing water damage.
