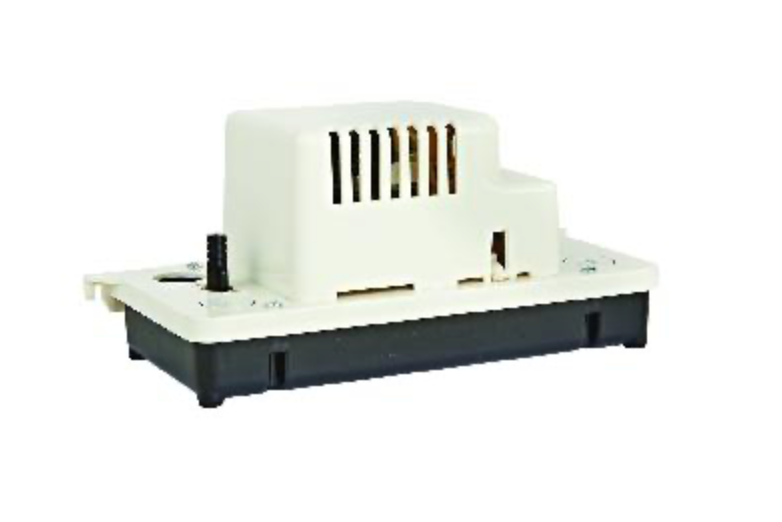

Little Giant VCCA-20ULS/230 Low Profile Vertical Condensate Pump

The Little Giant VCCA-20ULS/230 Low Profile Vertical Condensate Pump is designed to efficiently remove condensate from air conditioning, refrigeration, and dehumidification equipment. Its low-profile design allows for installation in areas where space is limited.

Key Features:

• Efficient Performance:

  • Capable of pumping up to 80 gallons per hour (GPH) at a 1-foot head.

  • Handles 70 GPH at 5 feet, 45 GPH at 10 feet, and 10 GPH at 18 feet.

  • Maximum shutoff head of 17 feet.

• Motor Specifications:

  • Equipped with a 1/30 horsepower motor.

  • Operates on 230 volts.

• Compact Design:

  • Low-profile construction facilitates installation in confined spaces.

Specifications:

• Voltage: 230V

• Horsepower: 1/30 HP

• Flow Rates:

  • 80 GPH at 1' lift

  • 70 GPH at 5' lift

  • 45 GPH at 10' lift

  • 10 GPH at 18' lift

• Maximum Shutoff Head: 17 feet

• Shipping Dimensions:

  • Length: 13.90 inches

  • Width: 7.00 inches

  • Height: 6.40 inches

• Shipping Weight: 5.45 lbs

Applications:

This condensate pump is ideal for use with:

• Air conditioning units

• Refrigeration equipment

• Dehumidifiers

It effectively manages the removal of condensate, preventing water buildup and potential damage.
