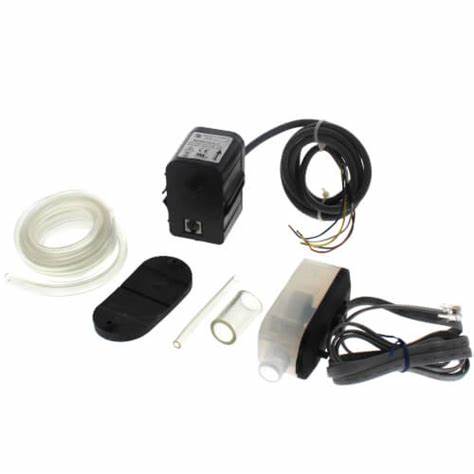

Beckett MS602ULC Mini Split Condensate Pump (230V)

The Beckett MS602ULC Mini Split Condensate Pump (230V) is engineered to efficiently remove condensate from mini split systems up to 36,000 BTU. Its compact design and robust performance make it ideal for installations where space is limited.

Key Features:

• High Lift Capacity: Offers a maximum lift of 53 feet, with a recommended operational lift of up to 33 feet, accommodating various installation requirements.

• Suction Lift: Provides a maximum suction lift of 4 feet, allowing flexible placement of the pump relative to the condensate source.

• Thermal Protection: Equipped with a thermally protected motor to prevent overheating, enhancing safety and longevity.

• Safety Switch: Includes a reservoir with an integrated On/Off/Safety switch to prevent overflow and potential water damage.

• Installation Accessories: Comes with a vibration/sound isolation mounting pad and 5 feet of no-kink silicone discharge tubing (0.2" ID) for straightforward installation.

Specifications:

• Voltage: 230V, 60 Hz, 18/15 Watts

• Flow Rate: 2.6 gallons per hour at 1-foot lift

• Operating Temperature Range: 41°F to 104°F

• Duty Cycle: 50%

• Reservoir Capacity: 0.06 quarts

• Dimensions: 4.3" (L) x 2.5" (W) x 2.8" (H)

Applications:

This condensate pump is specifically designed for mini split air conditioning systems, effectively managing condensate removal to maintain optimal system performance and prevent water-related issues.
